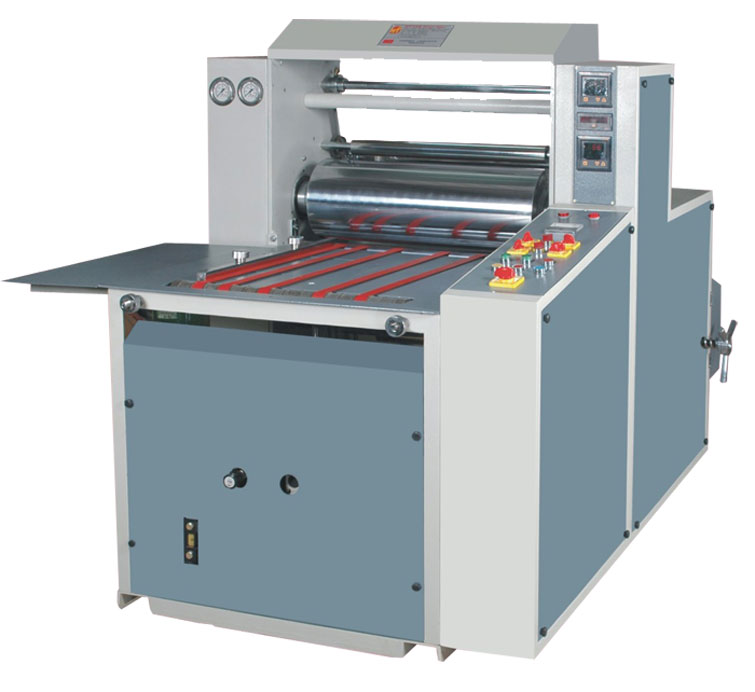

THERMAL / LAMINATOR PERFECTOR (Double Side in Single Pass)
Salient Features :
- Optimal solution to double-side lamination in single pass
- Advantageous for digital / offset press for short batch production
FEEDER :
- Manual feeding
OPTIONAL UPGRADE : INTEGRATED IN-LINE SHEETER
- Pneumatically controlled in-feed Nip Rollers for precision sheeting
- Thermal in-line sheeting (130 g/m² - 450 g/m² )
- Sheet counter with digital display
- Reception / Collection unit
TECHNICAL SPECIFICATIONS
| Feeding | Manual |
| Paper Stock | 90 - 450 g/m² |
| Laminating Speed (Thermal) | 0 - 25 m/min* |
| Laminating Pressure | Hydraulic |
| Temperature band | 80 - 130º C |
| Power X OPV | 6.5 kW X 415 v X 50 Hz |
* Production speed is subject to substrate and operating parameters
STANDARD SIZE :
| MM | 400 | 450 | 500 | 600 |
| Inches | 16" | 18" | 20" | 24" |
