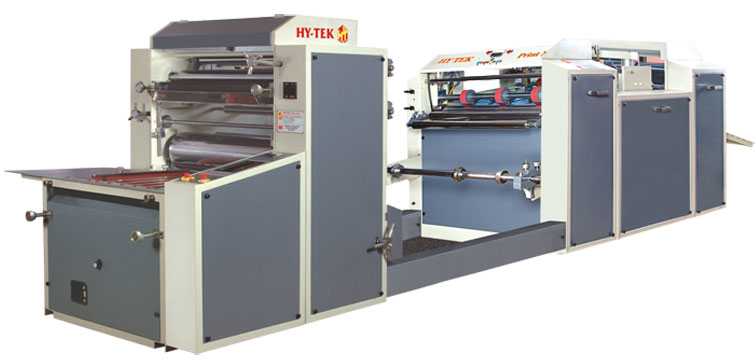

THERMAL / AQUEOUS LAMINATOR WITH DETACHABLE SHEET SEPARATOR

Salient Features :

LAMINATOR :

• Dual advantage of Thermal and Water based lamination
• Laminating nip pressure hydraulically regulated
• Water based laminating coating station with supplementary adhesive tank (20 - 25 kg capacity)
• Independent control panel / AC drive, with front end oscillator, side joggers & back stop
• Photo electric sensor detects and opens pneumatic joggers & activates under sheet air-vel
• Automatic pile height adjustment

FEEDER :

• Manual feeding

IN-LINE/ OFF-LINE SHEETER :

• Dual advantage of sheeting in & off-line
• Pneumatically controlled in-feed Nip Rollers for precision sheeting
• Synchronized single drive for Thermal in-line sheeting (90 g/m² - 450 g/m² )
• Independent AC drive for offline sheeting (90 g/m² - 450 g/m² )
• Sheet counter with digital display
• Reception / Collection unit

POWER :

• 5 kW X 415 V X 50 Hz

OPTIONAL UPGRADE - STACKER :

• Mirror image of feeder
• Independent control panel / AC drive, with front end oscillator, side joggers & back stop
• Photo electric sensor detects and opens pneumatic joggers & activates under sheet air-vel
• Automatic pile height adjustment

TECHNICAL SPECIFICATIONS :

MODEL	HTP 600	HTP 800
Feeding	Manual	Manual
Separation	Automatic	Automatic
Paper Stock	90 - 450 g/m²	90 - 450 g/m²
Laminating Speed (Aqueous)	0 - 45 m/min*	0 - 45 m/min*
Laminating Speed (Thermal)	0 - 25 m/min*	0 - 25 m/min*
Laminating Pressure	Hydraulic	Hydraulic
Temperature band	80 - 130º C	80 - 130º C
Power X OPV	7 kW X 415 v X 50 Hz	7 kW X 415 v X 50 Hz

* Production speed is subject to substrate and operating parameters

CUSTOMISED SIZE :

MM	900	1200
Inches	36"	48"

*Production speed is subject to substrate and operating parameters
