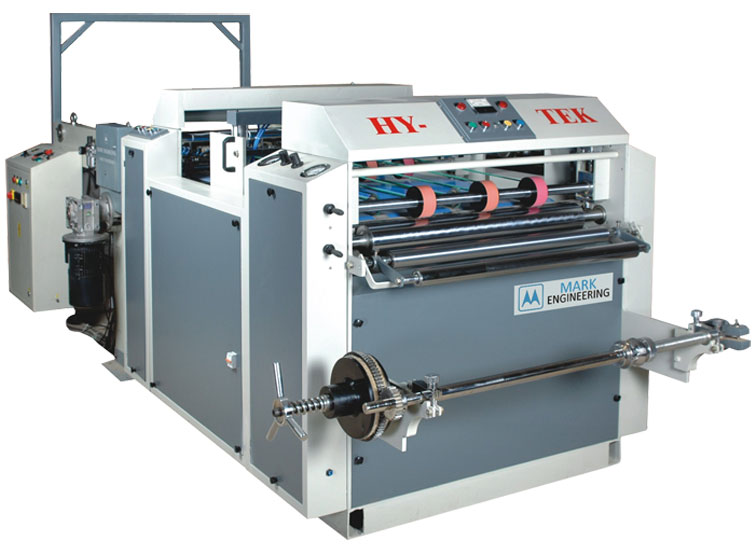

OFF-LINE LAMINATED SHEET SEPARATOR WITH STACKER

Salient Features :

STACKER :

• Mirror image of feeder
• Independent control panel / AC drive, with front end oscillator, side joggers & back stop
• Photo electric sensor detects and opens pneumatic joggers & activates under sheet air-vel
• Automatic pile height adjustment

POWER & OPV

• 1.5 / 2.3 kW X 415 V X 50 Hz

STANDARD SIZE :

	HTP 800
Sheet width	10” - 30”
Sheet length	12” - 40”
Material	90 - 450 g/m²
Pile Height	28”
Speed	60 m/min(max)
Operating Voltage	50 Hz
Power X OPV	8 kW X 415 v X 50 Hz
Compressed Air	15 bar
Footprint	12’ X 5’ (L x W)

TECHNICAL SPECIFICATIONS - STACKER

MM	600
Inches	24"

*Production speed is subject to substrate and operating parameters
