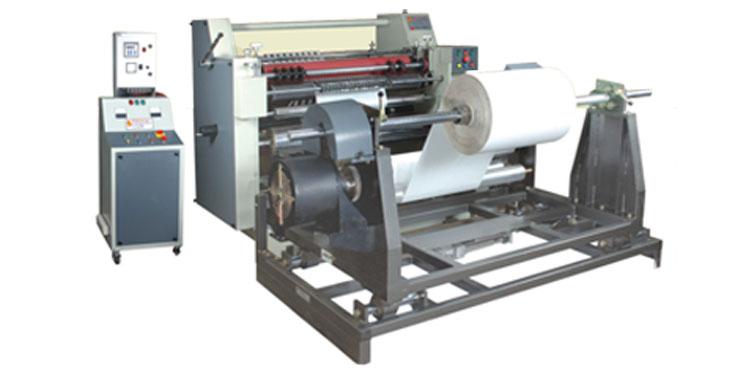

CENTRE / SURFACE SLITTING / REWINDING MACHINE
Engineered to guarantee impeccable performance and configured to slit different substrates like paper, film, foil, non-wovens. Master Control Panel with individual controls at slitting & rewinding ends.
SPECIFICATIONS :
| MODEL | HY-TEK 600 | HY-TEK 1100 | HY-TEK 1600 |
| Parent Roll Width: | 24" | 42" | 62" |
| Parent Roll Dia: | 40" | 40" | 50" |
| Min. Slitted Roll Width: | 1” (25 mm) | 1” (25 mm) | 1” (25 mm) |
| Slitted Roll Dia: | 16" | 16" | 16" |
| Operating Speed: | 0-180 Mtr/Min | 0-180 Mtr/Min | 0-180 Mtr/Min |
STANDARD SIZE
| 24" | 42" | 62" |
*Production speed is subject to substrate and operating parameters
